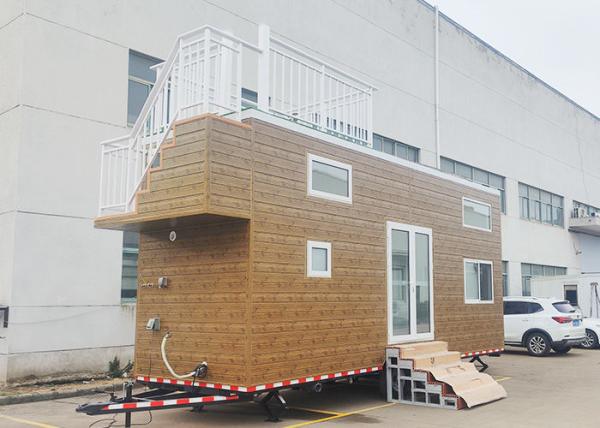

Orlando Tiny House

1 bedrooms 1 bathroom Area: 25.22 m²

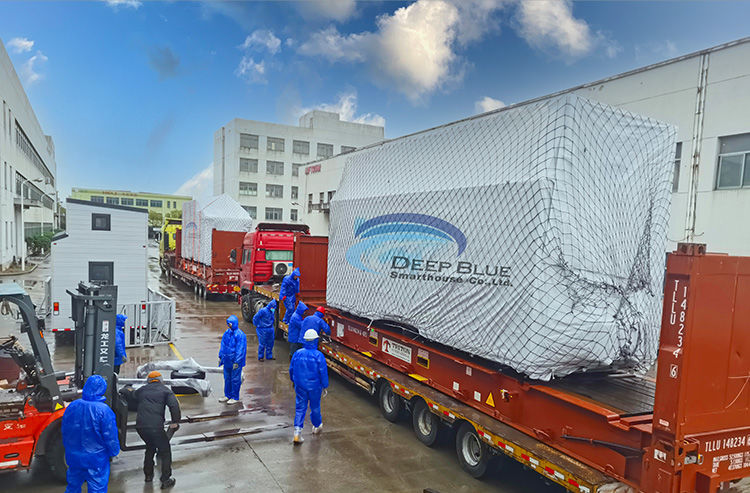

The Orlando Tiny House, designed and manufactured by DEEPBLUE SMARTHOUSE, is a versatile and innovative housing solution perfect for outdoor living and travel. Measuring 2.35 meters in width and 7.8 meters in length, this 25.22 square meter tiny home is easily transportable and can be shipped as a complete unit in a container​​.

Project Overview:
Project Name: Orlando Tiny House
Project Number:2343
Project Site: USA
Total Area: 25.22 square meters
External Size: 2.35 meters x 7.4 meters
Internal Size: 2.08 meters x 7.05 meters
Total Weight: 3.5 tons

Floor plan

• Trailer with 3axles for enough capacity.
• The ground floor has enough space for activity, including the kitchen, bathroom and living room.
• The loft has one bed,you can use for sleeping ,or as an office space.
• There is a small balcony on the roof

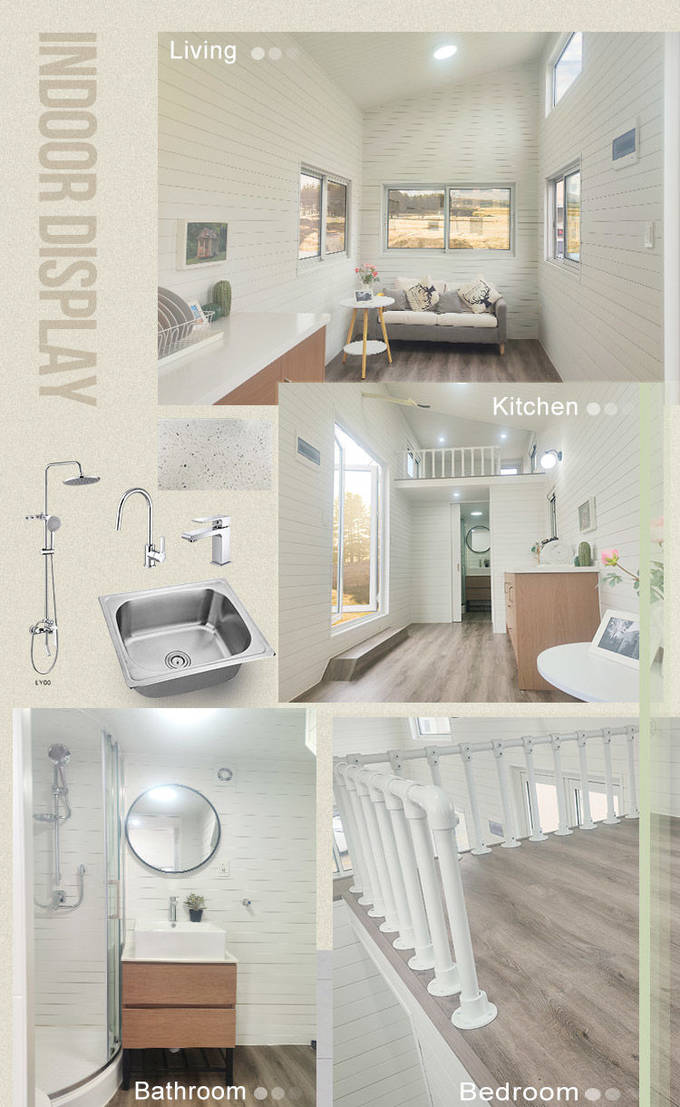

Inside, the Orlando Tiny House includes a well-equipped kitchen, a bathroom, 1 to 3 bedrooms, and a cozy living room, making it suitable for both short-term travel and long-term residence in a backyard setting​​. The interior walls are finished with 8mm integrated wall panels, and the floors are lined with 15mm CFC sheets, providing a sturdy and attractive living space.

Include:

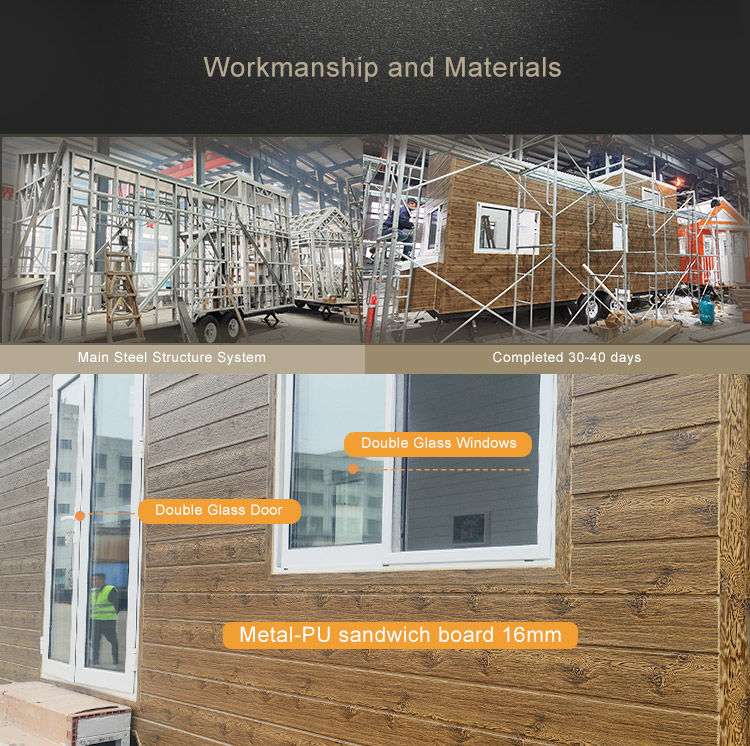

The Orlando Tiny House is built with a main steel structure system using AS1397 G550 AZ150 0.75mm steel frame. The house features comprehensive insulation, with R2.5 glass wool for walls and R3.5 for the roof. The roofing system is made from 0.5mm Colorbond sheet, ensuring durability and weather resistance​​.
