US ICC Prefab Small House Kits: Affordable Solutions For Tiny Living Airbnb

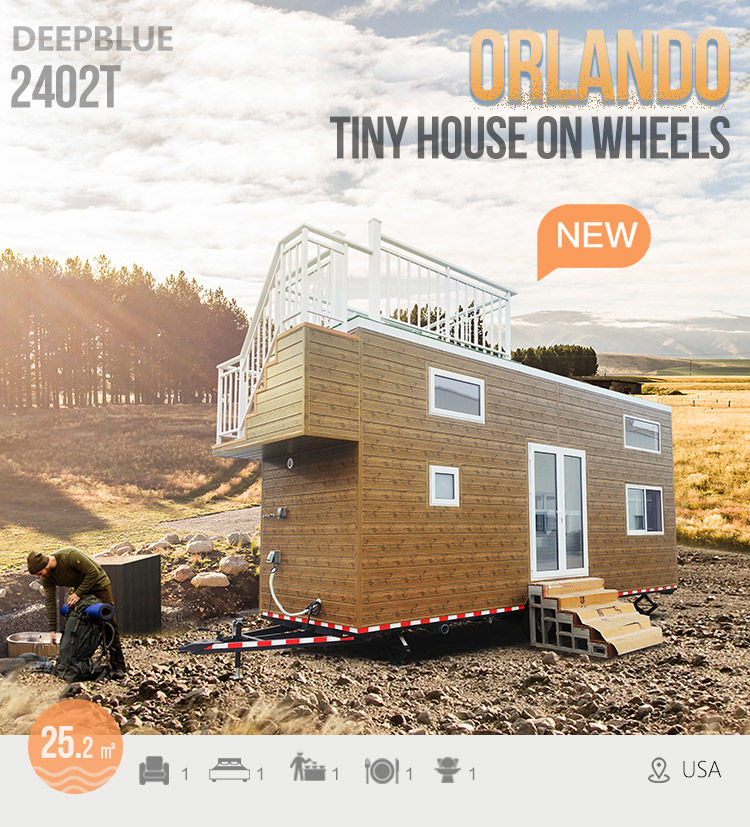

Orlando Tiny House

1 bedrooms 1 bathroom Area: 25.22 m²

DEEPBLUE SMARTHOUSE introduces the Orlando Tiny House, a compact yet luxurious living space designed for travelers who desire a serene retreat on the go. These tiny houses, crafted in January 2024, are the epitome of modern living in a small footprint, making them ideal for anyone who appreciates the beauty of simplicity and the freedom of travel.

Project Overview:
Project Name: Orlando Tiny House
Project Number:2343
Project Site: USA
Total Area: 25.22 square meters
External Size: 2.35 meters x 7.4 meters
Internal Size: 2.08 meters x 7.05 meters
Total Weight: 3.5 tons

Floor plan

• Accommodation: Each Orlando Tiny House boasts a kitchen, a bathroom, and one to three bedrooms, along with a living room, making it a perfect home away from home.
• Outdoor Living: The versatility of these tiny houses allows them to be placed in a backyard or used as a mobile home for outdoor adventures.
• Design and Comfort: The Orlando Tiny House combines functionality and comfort, offering a peaceful living environment whether you're exploring the great outdoors or relaxing in your own private space.

The Orlando Tiny House collection includes three models, each measuring 7.8 meters in length and 2.35 meters in width. These American RVs, known as the Cider Box, are tailored for Orlando, Florida, and are ready for delivery, fully assembled and easy to transport in a container.

Include:

Main Steel Structure: The robust steel frame wall and roof truss are constructed from AS1397 G550 Az150 0.75mm steel, ensuring a strong and stable structure.
Insulation: The walls are insulated with R2.5 glass wool, and the roof with R3.5 glass wool, providing excellent thermal insulation.
Roofing Material: The roof is topped with a 0.5mm Colorbond sheet for longevity and weather resistance.
Ceiling: An 8mm integrated wall panel creates a smooth and stylish ceiling finish.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.




Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
