Prefab Steel Framing Cabins Mass - Customizable Prefabricated Luxury Cabin
WalnutCreek
1 bedrooms
1 bathroom
1 living room
28m²
If you see the picture, you will realize that the cabins on the mountains are having an adjacent location. Yes, it will be a great destination to hang around with your friends. If you love adventure, these cabins on the mountain will be your ideal location. From hiking to spending the night in the lap of darkness- you can do a lot of things. Well, you cannot go there with your children as it is located on the mountain. However, if you have an adventurous mind, you will definitely enjoy this location.

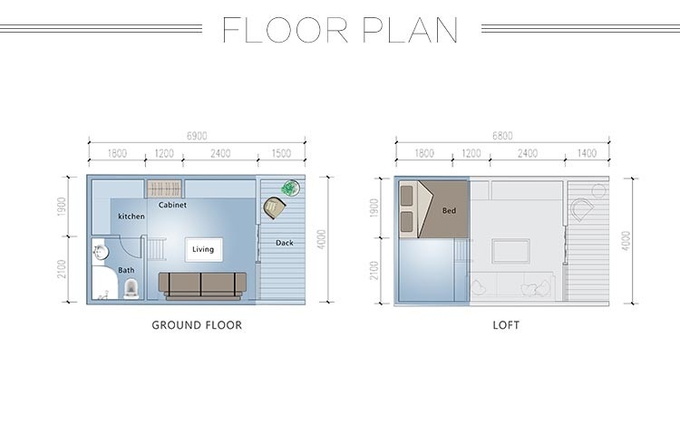

Size:W4×L6.9
Area:1F 23m2 2F 5m2 Deck 6m2
Introduce:Bed, kitchen, Bath, Living room
Use: Homestay hotel, garden studio, work room
Description:
Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: PVC/Gypsum board+others
Roof: colorbond
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Applications:
Toilet, washbasin, shower, kitchen, study room, etc.
Specifications
Home accents holiday :
ISO standard light gauge steel for the main structure. one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Company Introduction
Since Yinhua Chen founded the company in 2009.we have been proud to provide affordable manufactured and modular homes, apartments, commercial buildings, military barracks, and college dormitories to people all across the World. From humble beginnings, we have since built more than 5000 homes and won multiple awards for both design and construction. Today we build, sell, finance lease, and insure our buildings from China to the World.
