Prefab Luxury House Kits: High-End Villa Houses With Light Gauge Steel Modular Home
Baylawn House
3 bedrooms
3 bathrooms
1 Kitchen
1 Living room
120㎡
Introducing the Baylawn House, , a compact yet highly practical dwelling with a thoughtful design catering to the preferences of the local residents in Canada. Despite its modest size, this residence, spanning W8820×L6310mm and totaling 120㎡, maximizes functionality to meet the lifestyle needs of its inhabitants.
| NO | Content | Numerical value |
| 1 | Ground Floor | 60㎡ |
| 2 | Fisrt Floor | 60㎡ |
| 3 | Total Area | 120m² |
| 4 | House Width | 8.82m |
| 5 | House Length | 6.3m |
| 6 | Project location: | Canada |

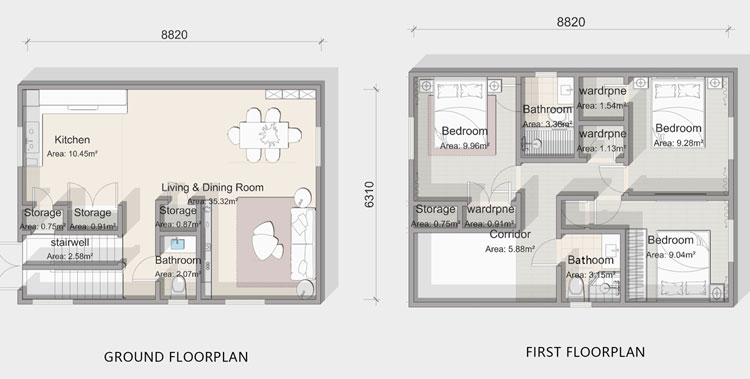

The Baylawn House showcases a well-thought-out floor plan, featuring a spacious Living & Dining area, a sleek Kitchen, and three Bedrooms designed to align with the preferences of Canadian residents. Each bedroom is uniquely crafted for comfort, and the three Bathrooms are designed with practicality in mind. This dwelling, with its intelligently planned spaces, offers a harmonious blend of functionality and style.
DEEPBLUE SMARTHOUSE's steadfast commitment to delivering outstanding architectural solutions. This residence reflects our dedication to offering homeowners a space that effortlessly blends comfort, style, and functionality into a harmonious living experience.
The Baylawn House showcases a well-thought-out floor plan, featuring a spacious Living & Dining area, a sleek Kitchen, and three Bedrooms designed to align with the preferences of Canadian residents. Each bedroom is uniquely crafted for comfort, and the three Bathrooms are designed with practicality in mind. This dwelling, with its intelligently planned spaces, offers a harmonious blend of functionality and style.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
