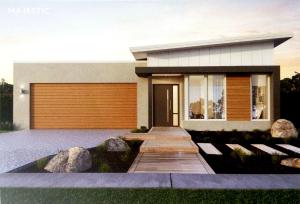

Personalization Luxury Light Steel Structure Bungalow Style House PU Insulation

Personalization luxury light steel structure Bungalow housing

Product Description:

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:
1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.
2. Roof structure: 89mm light gauge steel truss system.
3. Chassis: 89mm light gauge steel flooring chassis
4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.
5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration
6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy
7. ceiling: 8mm PVC ceiling panel
8. insulation: 89mm glass wool insulation with good soundproof performance.
9.windows: PVC sliding windows
10.exterior door: high-quality aluminum sliding windows
11.interior door: painted wood door
12.bathroom: shower, washbasin, toilet included
13. roofing: corrugated steel roofing with a gutter system
14. veranda deck: W.P.C veranda flooring.
ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Quick Detail:

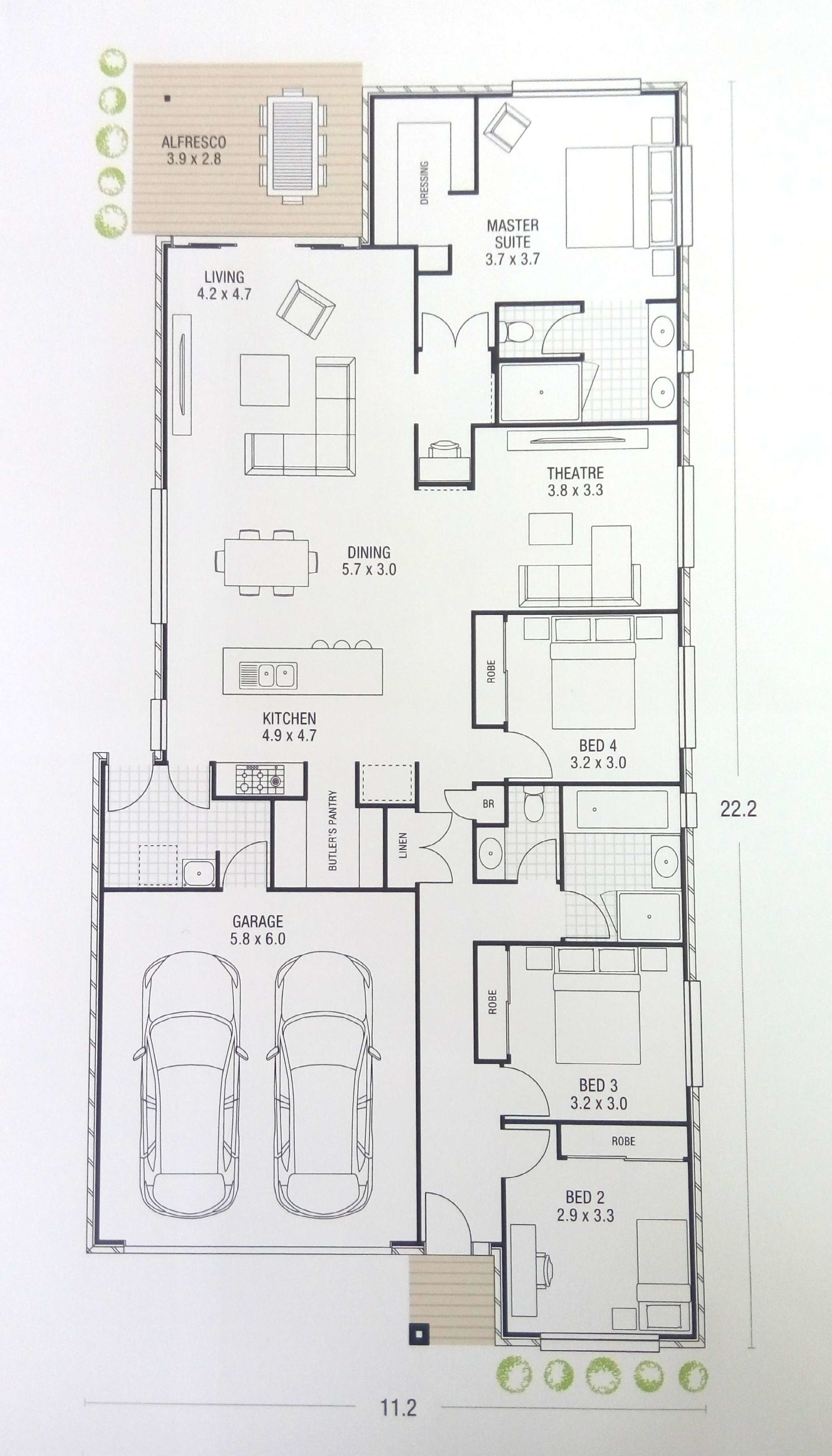

The floor plan:

MEASUREMENTS
Ground Floor	19.1sq	177.4㎡
Garage	3.7sq	34.8㎡
Outdoor Living	1.2sq	10.7㎡
Porch	0.2sq	2.1㎡
Total Area	24.2sq	224.9㎡
Minimum Lot Width	12.5m
Home Length	22.2m
Home Width	11.2m

Why Choose Light Gauge Steel Structure?

1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

Design Code:

1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Our Services:

If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa;bungalow; low-cost house; granny flat; apartment etc.many style house.
