Environment Friendly Bungalow Light Steel Building Homes Modular Prefab For Hotel

Brand Name : DEEPBLUE

Model Number : Segal 22

Certification : AS/NZS,UL,AISI,

Place of Origin : NINGBO,CHINA

MOQ : 1 SET

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 12000 houses/year

Delivery Time : 30-45 days

Packaging Details : Bare bundle / 40HQ

Material : Light Gauge Steel

Use : Hotel, House, Office, Shop, Villa

Wall materia : Alc panel/fibre cement cladding+MGO board/gypsum board

Insulation material : EPS/XPS/PU sandwich panel or glass wool

Ceiling material : MGO board/gypsum board

Floor/foundation material : laminate flooring/wooden/PVC carpet

Contact Now

Environment Friendly Bungalow Light Steel Building Homes Modular Prefab For Hotel

Quick Detail:

Name Bungalow homes Application Bungalow homes for a living
Color depend on customer’s request Feature

1.earthquake, cyclone proof

2.100 years of life

3.green, Energy save
Material light steel and other parts material Certificate CE,ISO,SAA,ETC

Door: steel security door/WPC or wooden door；

Window: aluminum alloy/PVC；

Other fittings: toilet, washbasin, shower, kitchen,etc；

Life time:100 years for structure.

detailed information:

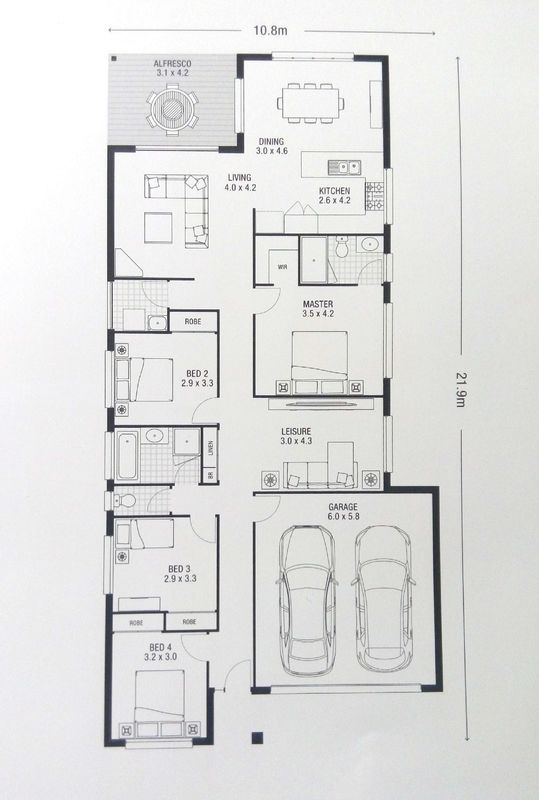

MEASUREMENTS
Ground Floor 16.7sq 155.5㎡
Garage 3.7sq 34.8㎡
Outdoor Living 1.4sq 12.9㎡
Porch 0.2sq 2.3㎡
Total Area 22.1sq 205.5㎡
　
Minimum Lot Width 12.5m
Home Length 21.9m
Home Width 10.8m

Environment Friendly Bungalow Light Steel Building Homes Modular Prefab For HotelEnvironment Friendly Bungalow Light Steel Building Homes Modular Prefab For HotelEnvironment Friendly Bungalow Light Steel Building Homes Modular Prefab For Hotel

Why Choose Light Gauge Steel Structure?

1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

Design Code:

1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Our Services:

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.

FAQ:

1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?

A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……

2. Q: What is the lifetime for your houses?

A: The durable for the structure is more than 70 years.

3. Q: What is the intensity and thickness of your steel structure material?

A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.

4. Q: How about your production equipment and structure design software?

A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.

5. Q: What are the main technical data of your houses?

A: We can send you the specification and technology details.
